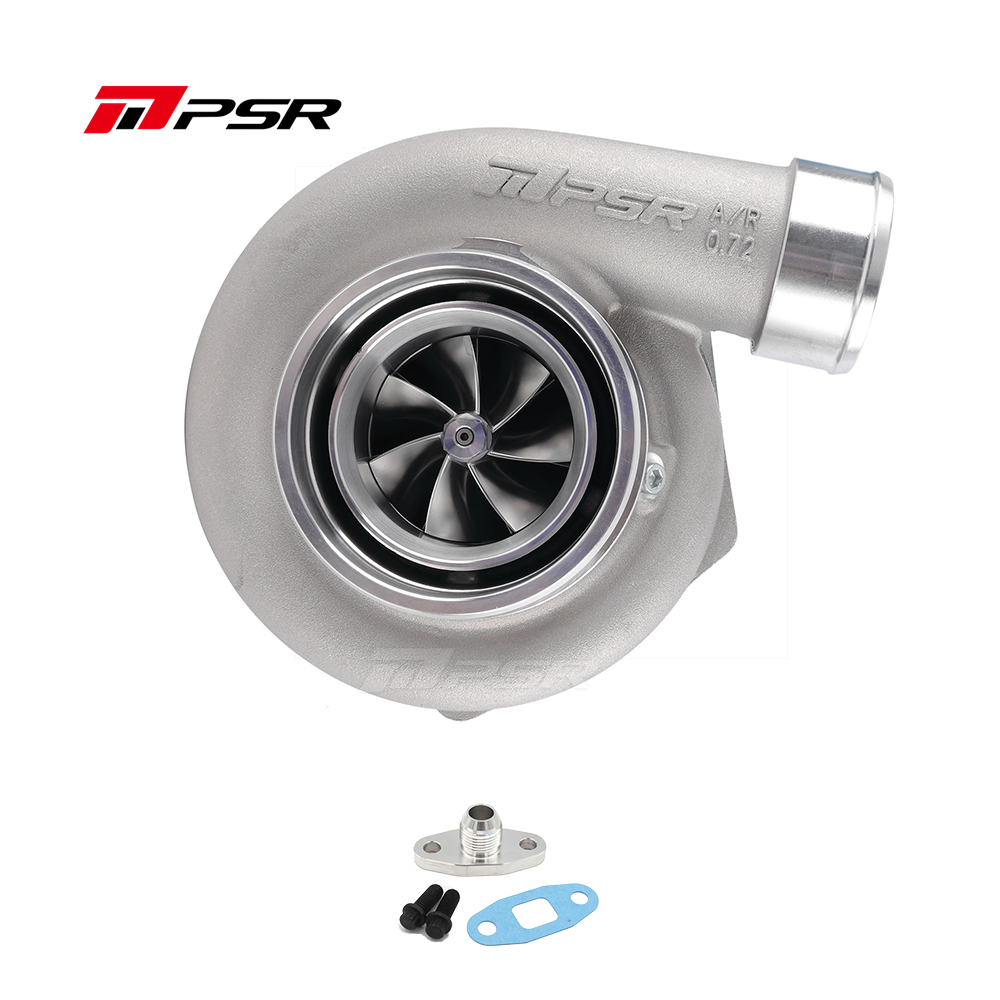

PTE6266
Ball bearing system provides optimal turbo response & better durability by reducing shaft motion.
Billet Compressor Wheel with Slim Nose and Hub for Reduced Weight and Faster Spool-up with Extended Tapered Tip Technology
Inconel 713c 10 Blade Turbine Wheel
V-Band Flange kit for the exhaust housing is included
Max Engine Horsepower: 735

SPEC

Billet Compressor Wheel: 62mm / 82.2mm,  7+7 Blade
Turbine Wheel: 66.1 / 74.17mm, 10 Blade
Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing shaft motion)
Compressor Cover Inlet/Outlet: 4.0” / 2.5” Hose
Turbine Housing: T3 0.82A/R, T4 0.96A/R
Internal oil feed port is 0.9mm
Oil feed fitting: 1/8-27 NPSF
Oil drain: T4 flange
