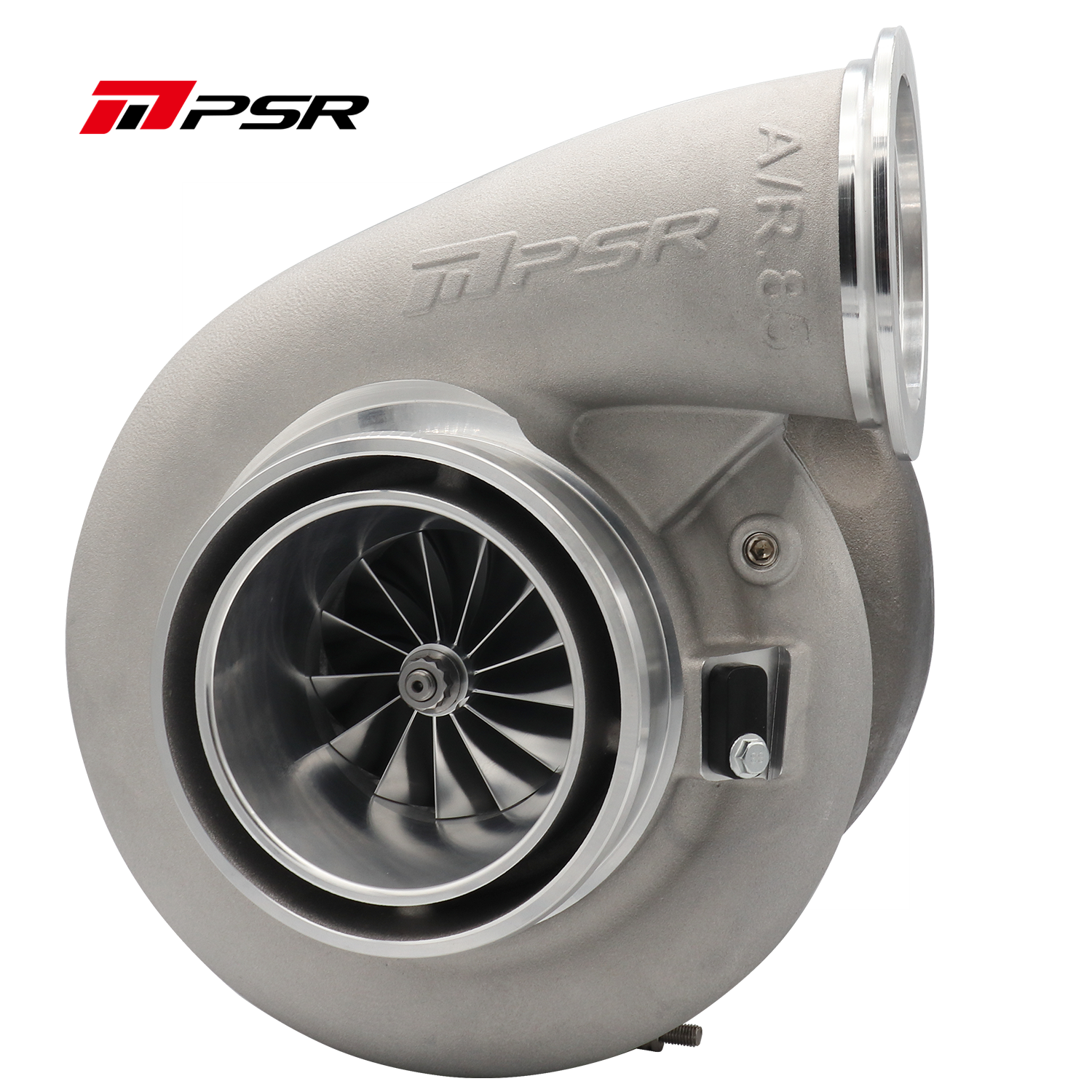

Pulsar PSR7782G
Please note, T51R housing option requires an extra 7 days handling time
Dual ceramic ball bearing system provides optimal turbo response &better durability by reducing the shaft-motion
13 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
9 Blade PTG-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
Water fittings included with super core
8 Options in Turbine Housing
SPEC
Compressor Wheel: 76.6*109.2mm
Turbine Wheel: 89*81.6mm
Compressor Inlet: 5″ Hose
Compressor Outlet: 3″ V-Band
Turbine Inlet: 3″ V-Band/T4 open/ T4 divided
Turbine Outlet: 3.5″ V-Band
Water Ports: -6AN
Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)
Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
It's strongly recommended to run water cooling to aid reliability (needed for warranty)
