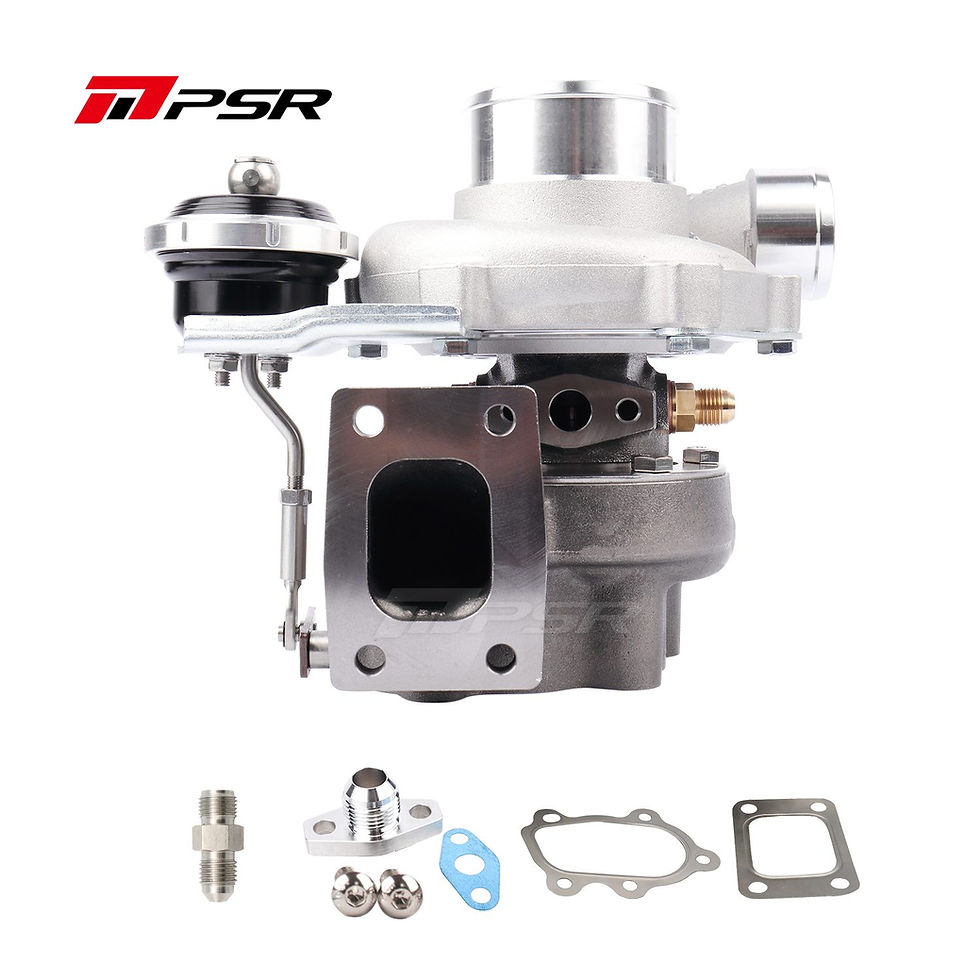

Pulsar PTX3076R Gen 2

• Please note, T51R housing option requires an extra 7 days handling time

• Recommended displacement 1.8 to 3.0 litres with power outputs up to 700hp possible.

• Dual Ceramic Ball Bearing System

• 9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology

• Inconel 713c 10 Blade Turbine Wheel

• Gen2 Cover Integrated with the Speed Sensor Port

• 0.83 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housing In option

• V-Band Flange kit(s) for the exhaust housing included

• Max Air Flow rate: 65 lb/min, rated @ 750 FWHP

• Supplied with manifold to turbine gasket and 5 bolt gasket (where applicable). Oil feed restrictor supplied (where applicable).

• Wastegate actuator supplied on internally gated units with compressor housing.

SPEC

• Compressor Wheel: 58*76mm

• Turbine Wheel: 60*55mm

• Compressor Inlet: 4″ Hose

• Compressor Outlet: 2″ Hose

• Turbine Inlet: T3, T4 or 2″ V-Band

• Turbine Outlet: 3″ V-Band(3.55″OD)

• Oil Feed: -4 AN  Oil Restrictor connection.

• Oil Drain: Std T3 Flange

• Water In/Outlet: M14*1.5

It's strongly recommended to run water cooling to aid reliability.
